Tyre Buffer

Tyre Buffer

350000 INR

Product Details:

X

Price And Quantity

  • 1 Unit
  • 350000 INR

Trade Information

  • Cheque
  • 3 Unit Per Month
  • 2 Days
  • Yes
  • Wooden Box Packaging.
  • All India
  • ISO 9001:2015

Product Description

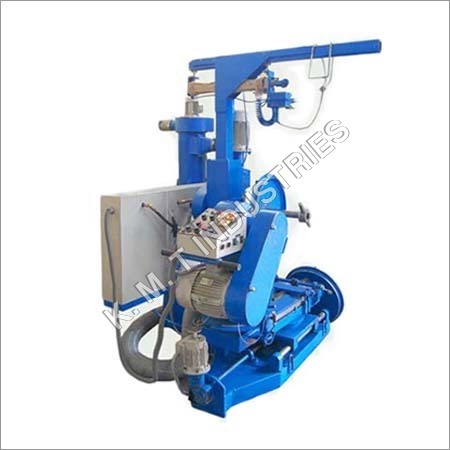

As a Haryana based renowned manufacturer and exporter, we are offering wide range of tires repairing and retreading machinery like Buffer. Equipped with 20 H.P motor, this equipment is designed with pneumatically driven built in tire, air blow gun, tread measuring component, rasp blades, pneumatic  brake for controlling rasp stand and rotary stand, air jets for dust removal purpose, shoulder trimming width measurement component and motorized table slides. Available in 7'x8x'x9' size, the weight of the offered Buffer is 1300 kg.

  • Capacity: 14.00 – 20 tyre size
  • provided with one fixed & one movable chuck.
  • 20 H.P motor for buffing.
  • Pneumatically operated inbuilt tyre lift for lifting of tyre from the floor to the chuck.
  • Tread measuring device for easy measurement of circumference without using the measuring tape.
  • Shoulder trimming facility.
  • Forwarded trimming facility.
  • Forward & reverse buffing facility.
  • Device for measuring shoulder trimming width.
  • Rasp blades sharpening attachment.
  • Pneumatic brake for rotary table & rasp stand.
  • Heavy suction 3H.P blower for buffer dust.
  • Air blow gun for air blowing purpose as required.
  • Air jets for buffer dust cleaning at slide rail & lead screw.
  • Specially designed rasp hub assembly & blades fro uninterrupted working.
  • Motorised table slide movement with 0.5 H.P motor.
  • Overall weight: 1300 Kgs.
  • Overall dimensions: 7'x8x'x9'
  • Air consumption: 10cfm at 125 psi: 50cfm at 125 psi, while inflation.
  • Connected load: 18.3 KW
